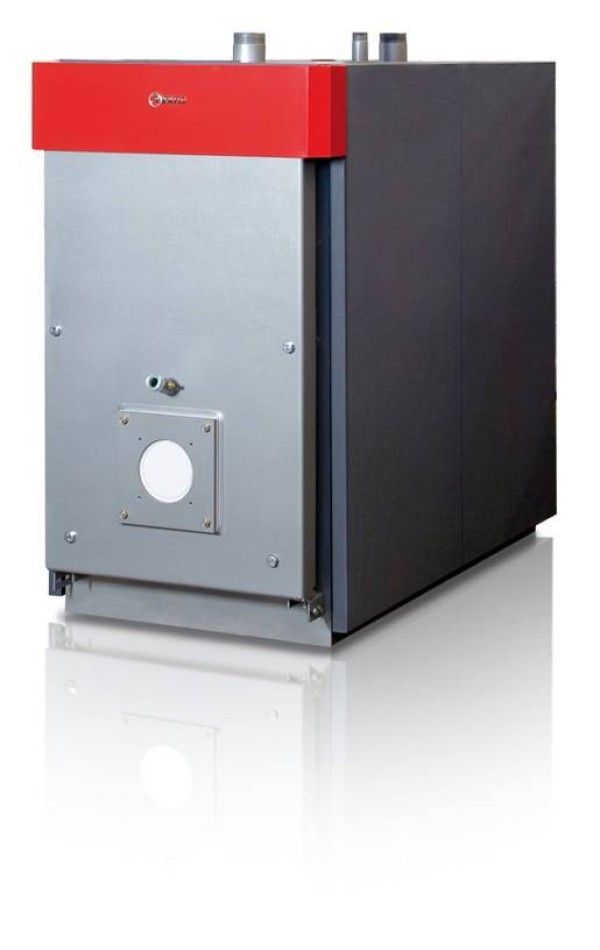

RTS 2S
Pressurized steel boilers, that can be matched with any fuel jet burners. Provided with completely wet combustion chamber with free dilation and three passes flue path. The flue pipes are equipped with removable stainless steel turbulators, which allow to optimize the efficiency of the heat exchange without increasing head losses.

The door features an ambidextrous opening and is provided with a peephole with pressure intake.

Casing is made of stove-enamelled sheet. Shell and flue gas zone are easy to reach for maintenance.

The control panel should be ordered separately.

– High efficiency both punctual and seasonal

– Operation at modulating temperature (minimum allowed return temperature 50 °C)

– Several solutions thanks to the combination with RIELLOtech control panels

– Maximum operating pressure: 6 bar.

Single-piece steel boilers with three flue gas passes, that can be matched with jet burners
The particular geometry of the heat exchange allows to reduce the permanence time of flue gases in the high temperature zones while decreasing in this way the formation of NOx for low polluting emissions
